Same model may have multiple batches, images only for reference.

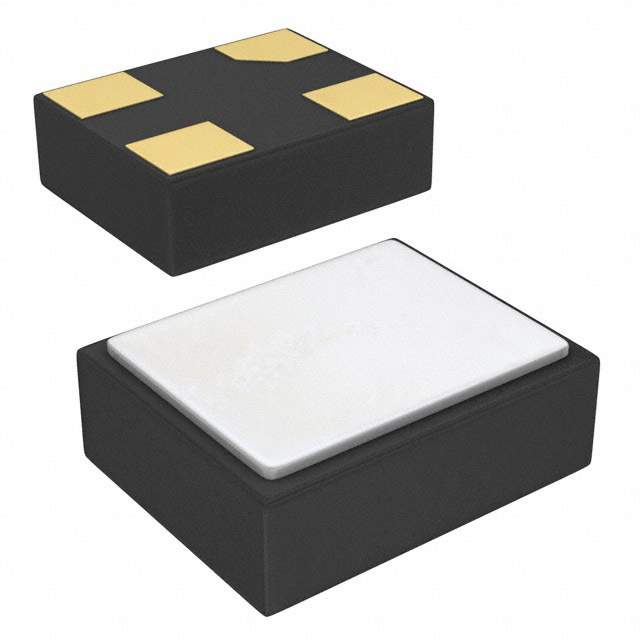

ASA2-12.288MHZ-L-T Real Image
Same model may have multiple batches, images only for reference.

ASA2-12.288MHZ-L-T

Part No ASA2-12.288MHZ-L-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 12.2880MHZ HCMOS SMD / 12.288 MHz XO (Standard) HCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Datasheet
ASA2-12.288MHZ-L-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASA
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 12.288 MHz
Function Enable/Disable
Output HCMOS
Voltage - Supply 1.8V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 5mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.031" (0.80mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1340592-ASA2-12.288MHZ-L-T
Ultra Librarian 3D Model Ultra Librarian ASA2-12.288MHZ-L-T CAD Model

Description

The ASA series XO oscillator is a high-quality electronic component manufactured by Abracon LLC.

  • Oscillator Type: XO
  • Frequency: 12.288 MHz
  • Function: Enable/Disable
  • Output: HCMOS
  • Frequency Stability: ±50ppm
  • Voltage Supply: 1.8V
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Height: 0.031" (0.80mm)
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No Lead
  • Temperature Range: -40°C to 85°C
  • REACH: Unaffected
  • Current Supply (Disable): Not Specified
