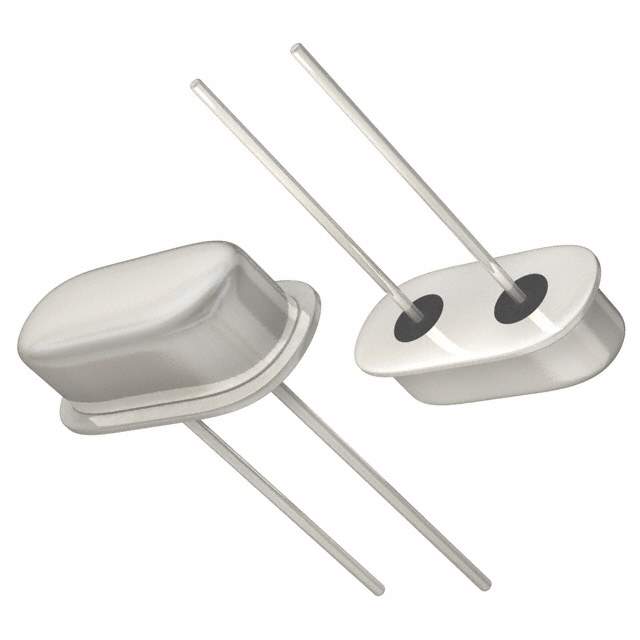

ABL-16.000MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

ABL-16.000MHZ-B2

Part No ABL-16.000MHZ-B2
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 16.0000MHZ 18PF TH / 16 MHz ±20ppm Crystal 18pF 40 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Abracon LLC
Packaging Bulk
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 40 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Through Hole
Case / Package HC-49/US
Size / Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Part Number 300-9041,300-9041-ND,535-9041
Standard Package 1,000
Win Source Part Number 1328352-ABL-16.000MHZ-B2
Ultra Librarian 3D Model Ultra Librarian ABL-16.000MHZ-B2 CAD Model

Description

The ABL series from Abracon LLC is a MHz crystal with a frequency of 16MHz from Abracon LLC.

  • Frequency: 16MHz
  • Temperature Range: -20°C to 70°C
  • Package: Through-hole
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • ESR: 40 Ohms
  • Operating Mode: Fundamental
